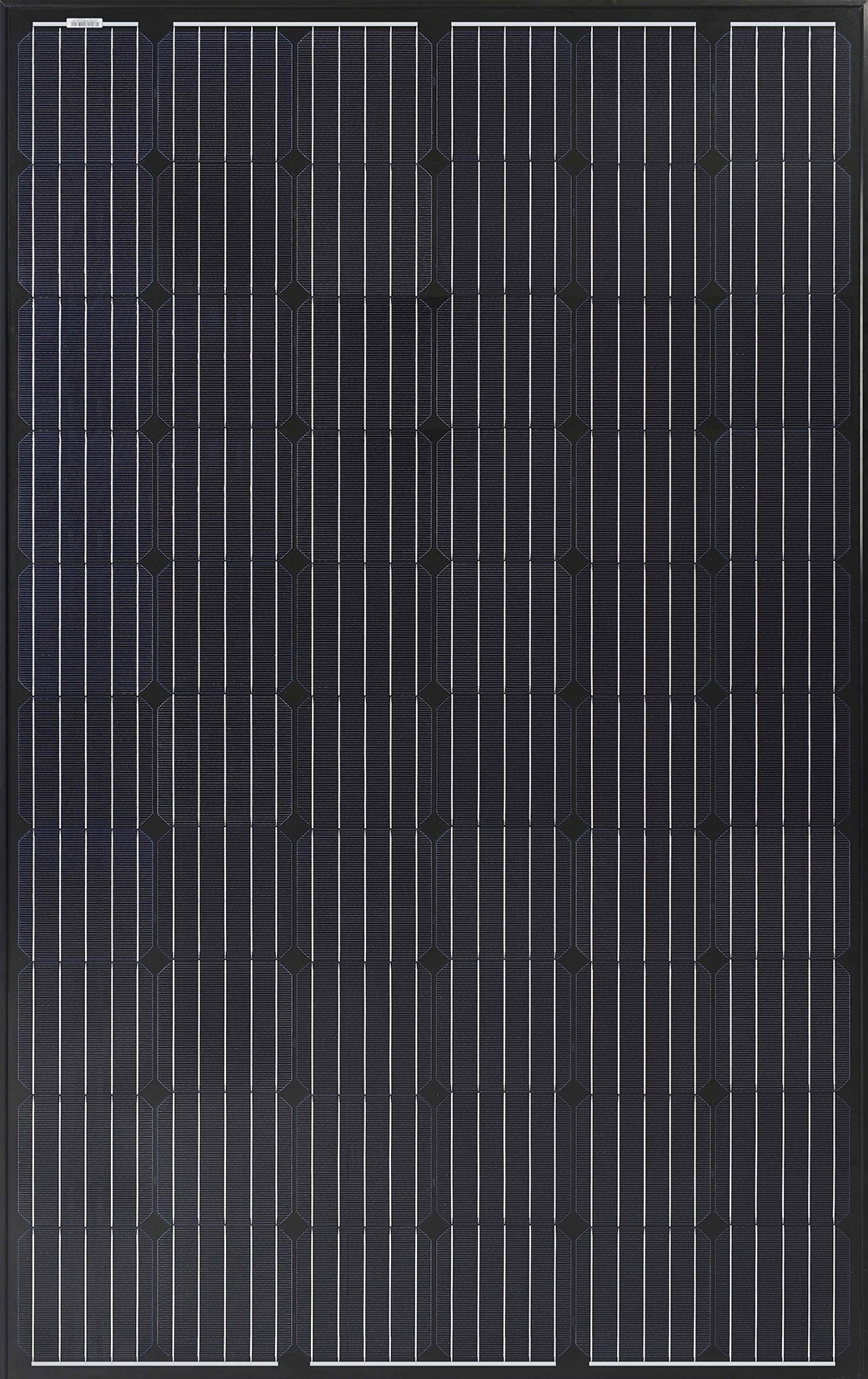

Module AIRS-330M

  • Characteristics products
  • AIRS-330M
    Brand AIR SOLAR SOLUTION
    Type
    Part number 2EN200001
    PHYSICAL CHARACTERISTICS
    Length mm 1665
    Width mm 1002
    Thickness mm 35
    Empty / full weight kg 19
    Number of cells 60
    Cell type Monocrystalline Silicon PERC
    Connectors MC4 / MC4 compatible
    Cable length mm 900
    Junction box IP68 - 3 diodes
    Maximum charge Pa 5400 (snow) / 2400 (wind)
    Frame / Backsheet Silver anodized aluminum
    OPERATIONAL CHARACTERISTICS
    Temperature °C -40 à +85
    Maximum system voltage VDC 1000
    Maximum reverse current A
    NMOT °C 45 +/- 2
    Application class
    PHOTOVOLTAIC CHARACTERISTICS*
    Nominal power W 330
    Output power tolerance W 0 / +3
    PV module efficiency % 19.78
    Maximum power voltage (Vmpp) V 34.17
    Intensity at maximum power (Impp) A 9.66
    Open circuit voltage (Vco) V 41.66
    Short-circuit current (Isc) A 10.04
    TEMPERATURE COEFFICIENTS
    Temperature coefficient Voltage (μVco) %/°K -0.29
    Temperature coefficient Current (μIcc) %/°K 0.08
    Temperature coefficient Power (μPmpp) %/°K -0.38
    Maximum reverse current A
  • Technical documentation
